Pressure Limiting Valve Assembly Straight – 350kPa, 12mm Push Fitting

The Pressure Limiting Valve Assembly Straight is designed to protect your caravan, RV, motorhome, and home plumbing systems from damage caused by excessive water pressure. Manufactured with a durable DR brass body and pre-assembled for easy installation, this valve ensures safe, reliable operation with both hot and cold water systems.

With a 350kPa pressure rating and integral non-return valve, it provides consistent water pressure, prevents backflow, and extends the life of your plumbing and appliances. The assembly includes a 12mm push fitting on one end and a tap adaptor on the other, making it quick and simple to connect to your hose or existing fittings.

---

✅ Key Features

• 350kPa Pressure Rating – Prevents damage from high water pressure

• Durable DR Brass Body – Long-lasting quality construction

• Integral Non-Return Valve – Stops backflow for added safety

• Hot & Cold Water Compatible – Suitable for a variety of applications

• Easy Installation – 12mm push fitting and snap-on tap adaptor included

• Pre-Assembled – White fitting glued to the main body; black fitting removable as required

• Great Value – High-quality materials at an affordable price

---

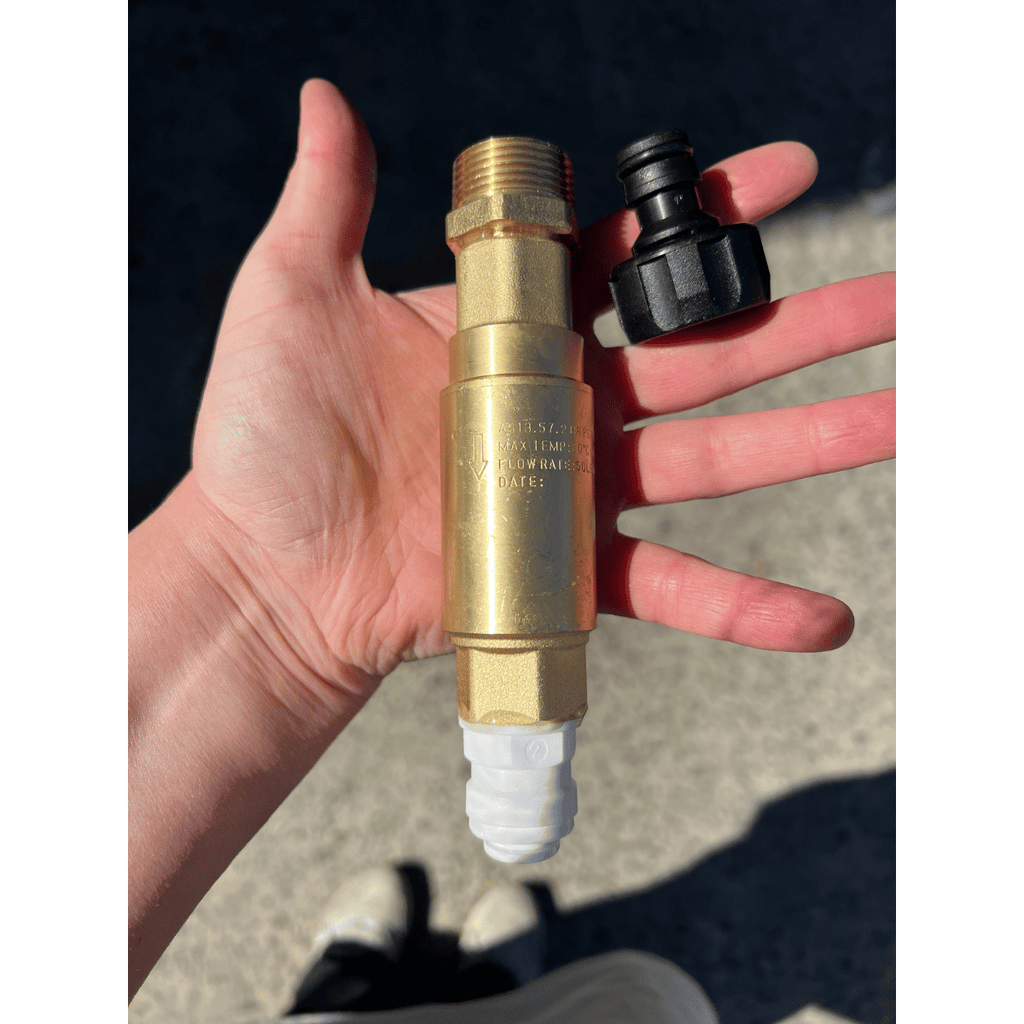

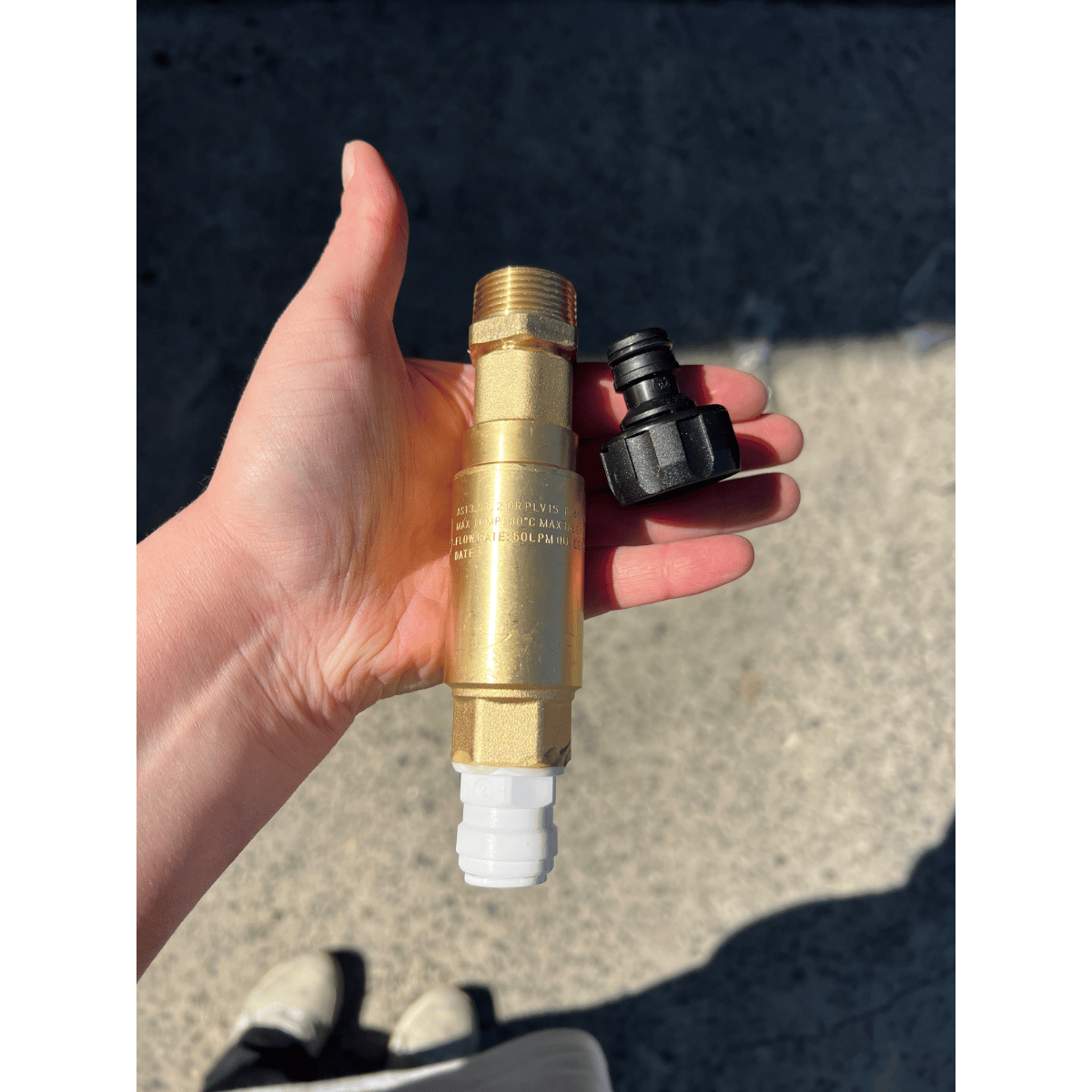

📦 Included in the Assembly

• 1 × 1/2" 350kPa Pressure Limiting Valve

• 1 × 3/4" × 1/2" Brass Hex/Reducing Union

• 1 × 12mm Male Iron Push Fitting

• 1 × 3/4" BSPF Snap-On Tap Adaptor

🚐 Compatible With All Major Caravan Brands

This valve assembly is suitable for use across a wide range of Australian caravans, motorhomes, and camper trailers, including:

• Jayco

• Avida

• Royal Flair

• Lotus Caravans

• New Age Caravans

• Zone RV

• Coromal

• JB Caravans

• Kedron Caravans

• Retreat Caravans

• Majestic

🛠 Applications

This valve assembly is ideal for:

• Caravans and RVs

• Motorhomes and camper trailers

• Domestic plumbing systems

• Appliances and water filters requiring safe pressure limits

---

🚐 Why Buy from Plenty River?

Plenty River Plumbing has over 25 years of experience in caravan plumbing, installations, and water systems. We supply quality fittings and accessories designed for Australian conditions, backed by trusted service and expert knowledge.
