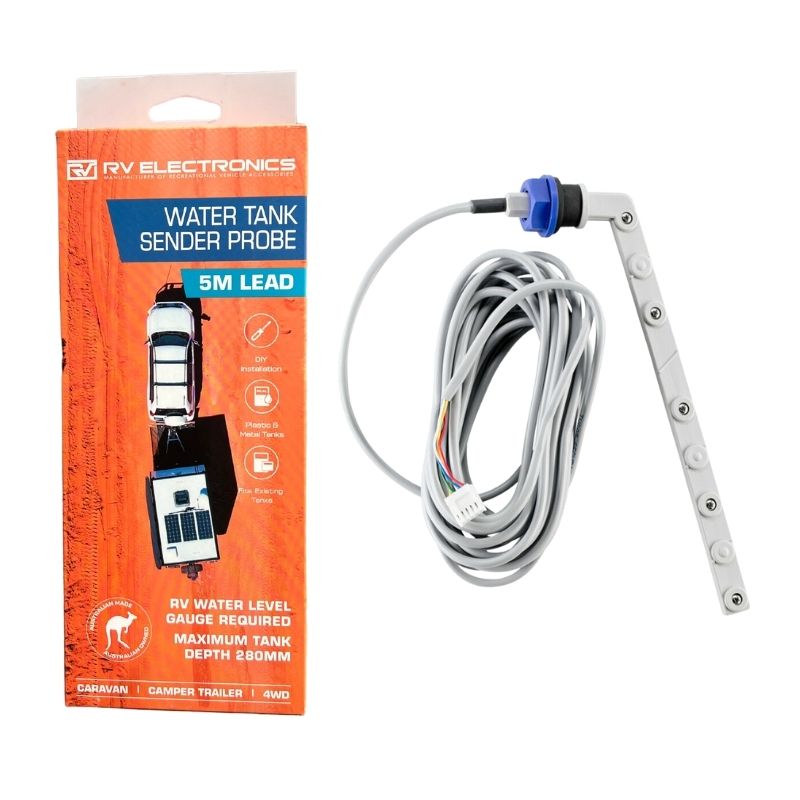

RV Water Tank Sender Probe for Under-Chassis Low Profile Tanks – Compatible with RV Electronics LED Tank Gauges
Product Overview
Upgrade your caravan or RV water system with the RV Water Tank Sender Probe for Under-Chassis Low Profile Tanks, designed for accurate, maintenance-free water level monitoring. Perfectly compatible with RV Electronics LED water tank gauges, this high-precision probe measures tank levels using five electronic sensors—no moving parts, no floats, no fuss.
Engineered specifically for under-chassis and low-profile water tanks, this sender probe is ideal for caravans, camper trailers, motorhomes, and boats where installation space is limited. It installs easily through a single 22 mm (7/8″) hole using a compression grommet seal that ensures a watertight, durable fit.
✅ Key Features & Benefits
-
Purpose-Built for Low-Profile Tanks – Designed for shallow under-chassis installations commonly found in caravans and camper trailers.
-
Accurate Level Detection – Measures water levels via 5 integrated contact sensors for precise readings.
-
Compatible with RV Electronics LED Gauges – Works seamlessly with single, double, or triple RV Electronics tank monitoring systems.
-
Simple Installation – Requires just one 22 mm (7/8″) hole on the side of the tank; installs quickly and securely.
-
Leak-Free Seal – Compression grommet design provides a tight, waterproof seal with no adhesives required.
-
No Moving Parts – Reduces risk of wear or failure, ensuring reliable long-term performance.
-
Multi-Tank Monitoring – Check up to three tanks at once when connected to a compatible RV Electronics gauge.
-
Maintenance-Free Operation – Solid-state technology for consistent accuracy even in harsh travel conditions.
📊 Specifications
-
Model: RV Under-Chassis Low Profile Tank Sender Probe
-
Compatibility: RV Electronics LED water level gauges (single, double & triple tank models)
-
Installation Hole Size: 22 mm (7/8″)
-
Suitable Tank Depth: 100 mm – 280 mm (4″ – 11″)
-
Sensors: 5 contact sensors (no moving parts)
-
Mounting: Side-mount with compression grommet seal
-
Application: Under-chassis, low-profile fresh-water tanks
-
Construction: Corrosion-resistant materials, sealed electronics
-
Made For: Caravans, RVs, camper trailers & boats
🛠 Installation Notes
-
Drill a single 22 mm (7/8″) hole into the tank wall.
-
Insert the probe and tighten the nut to compress the grommet, forming a watertight seal.
-
Connect the sender probe directly to your RV Electronics LED gauge.
-
Test the system to confirm accurate readings.
💡 If you’re unsure how to install this product, contact Plenty River Plumbing Pty Ltd for a professional installation quote.
🚐 Ideal For
-
Caravans & Camper Trailers
-
Motorhomes & RVs
-
Boats & Marine Tanks
-
Off-Grid or Custom Water Systems
Perfect for travellers wanting a compact, accurate, and durable sender probe for monitoring under-chassis or low-profile water tanks — with complete compatibility for RV Electronics LED gauges.
