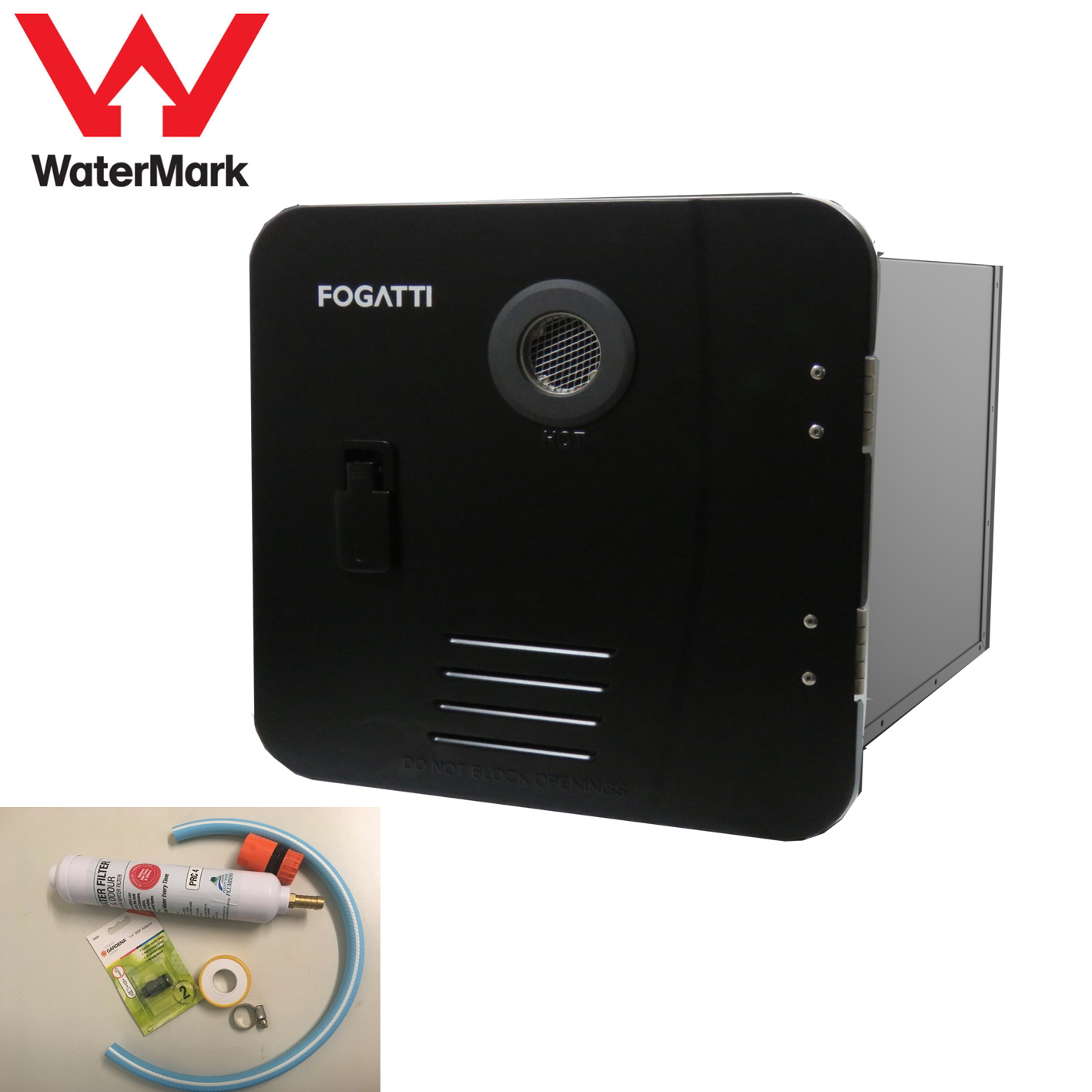

Fogatti HWS Black Door (Instantaneous) with Inline Filter Kit

• State of the art electronic controlled LPG fuelled
• 12 Volt operation

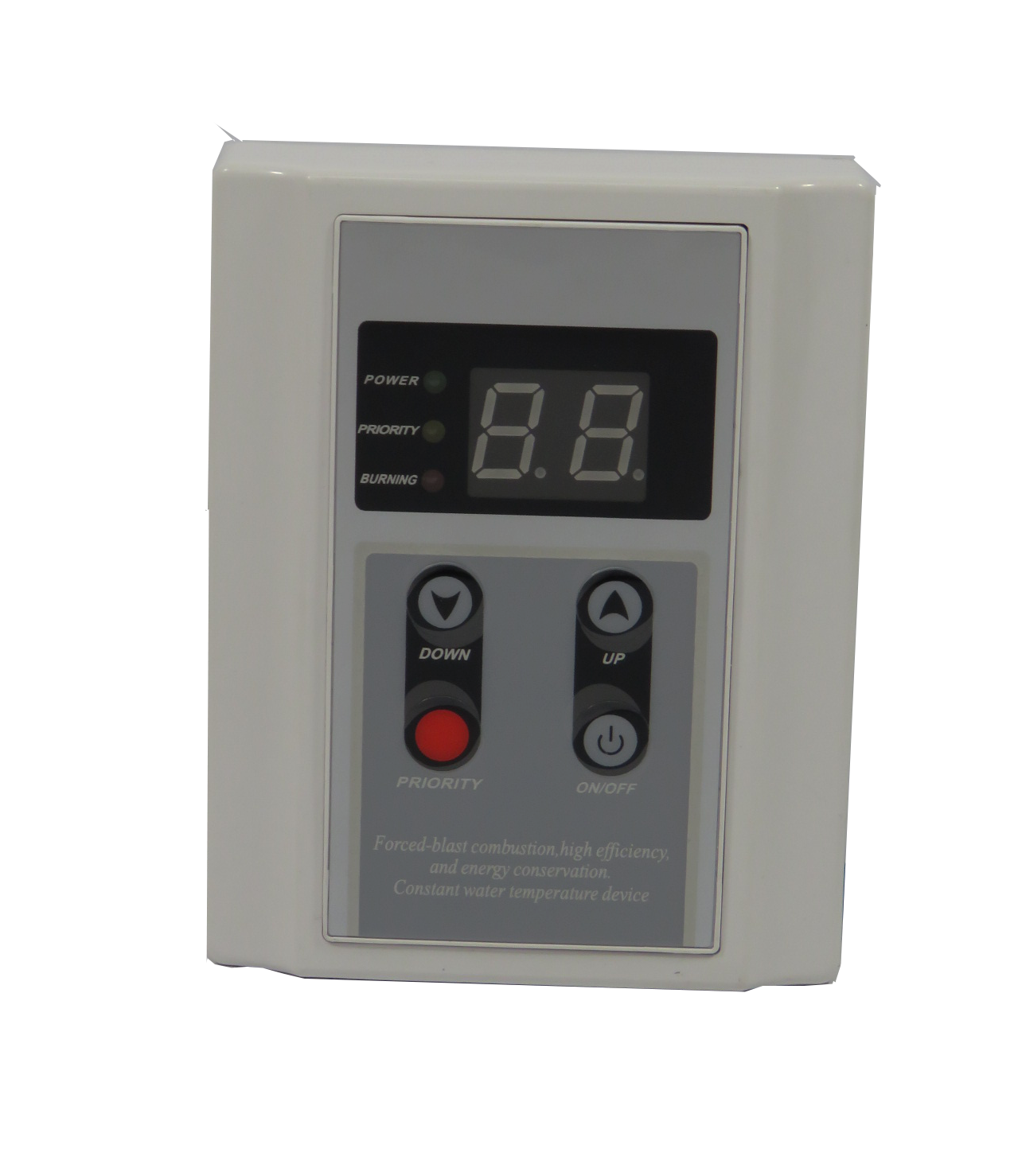

• Set the desired temperature in from your in cabin controller
• Monitor status of your heater from the in cabin controller
• Unlimited hot water no waiting time for water to reheat
• Correct door opening for right hand drive
• Increased dust protection
• Maximum temperature 51C (at the heater)
• No need for tempering valve
• Enclosed 42,000 BTU burner for fast heat up
• Requires smaller space as there is no tank
• No anodes required (lower maintenance cost)
• Installation opening size 330x330mm and less depth required compared to storage units.
• Designed for Australian conditions
• Doors available in Black
• Improved dust sealing
• Second digital controllers available for convenience in your caravan or motorhome (sold separately)
• Field tested in Australia for 1 year
• All units tested in Australia prior to sale
• Unlimited hot water

Specifications

• Minimum Heat Input: 20,000 BTU/hour
• Orifice drill size: 0.91mm for LPG
• Gas rated pressure: 2.75kPa
• Maximum Manifold Pressure: 1.54kPa
• Minimum Manifold Pressure: 0.37kPa
• Maximum Water Pressure: 800kPa
• Minimum Water Pressure: 100kPa
• Water Heating Capacity (temp rise 25 deg.): 6LPM
• Power Supply: 12V DC, RV battery
• Total Input Current: 10 Amp
• Installation cut out size (WxHxD): 330 x 330 x 450mm
• Weight: 13.5kg
• 2 year warranty
• Direct replacement for Suburban Hot Water Systems

Watermark Certificate of Conformity, SAI Global certificate No WMK26286 to AS3498-2009

Gas Safety Certification Scheme ( GSCS ) SAI Global certificate No SAI-4003348 to AS/NZS5263.1.2:2016

Advantages over competing hot water systems

• Better quality product especially when compared to other HWS
• Best value instantaneous HWS on the market
• Great servicing options available
• No tempering valve required as opposed to Gas/Electric HWS
• 2 year warranty comparable with Suburban HWS whereas other HWS only have 1 year warranty
