Description
RV Electronics Slimline Double Tank Water Level Gauge + 2× 7.5m Sender Probes – Black
Product Overview
Easily keep track of your caravan or RV’s water levels with the RV Electronics Slimline LED Double Tank Water Level Gauge + 2× 7.5m Sender Probes. Compact, accurate, and Australian-made, this complete kit lets you monitor two tanks at once — ideal for caravans, motorhomes, camper trailers, and boats where tanks are mounted further from the control panel.
The Slimline 65×65 mm design fits neatly into dashboards or wall panels, while the 7.5 m sender probes are perfect for long-distance installations. With a simple push-button LED display, battery power, and no 12 V wiring required, this dual-tank monitoring system delivers easy, reliable performance wherever you travel.
✅ Key Features & Benefits
-

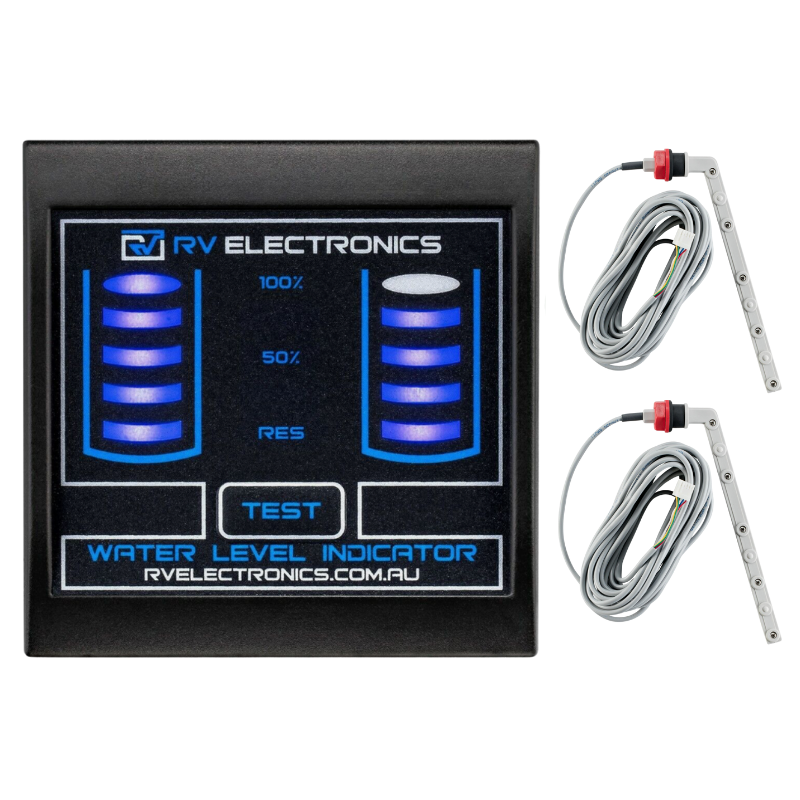

Complete Double Tank Kit – Includes 1 × Slimline gauge + 2 × 7.5 m sender probes for dual-tank monitoring
-
Compact Slimline Design – 65 × 65 × 11 mm face fits tight dashboards or wall panels
-
Battery Operated – Powered by a replaceable A23 battery (included); no 12 V wiring needed
-
Simple Installation – Side-mount probes install directly into tank walls — no tank removal required
-
Accurate, Maintenance-Free Monitoring – Each probe uses 5 solid-state sensors with no moving parts
-
Bright 5-Bar LED Display – Clear and easy to read; press Test for instant level indication
-
Retrofit Compatible – Works with older RV Electronics probes and systems
-
Universal Fit – Suitable for both plastic and metal tanks
-
Australian-Made Quality – Built tough for local caravanning and marine conditions
📦 What’s Included
-

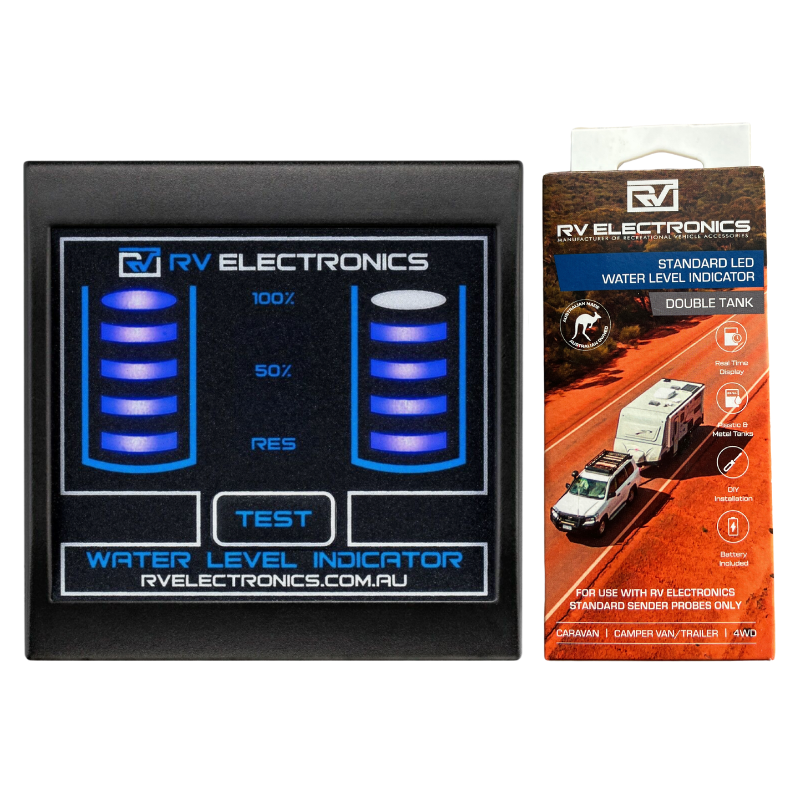

1 × RV Electronics Slimline LED Double Tank Water Level Indicator Gauge (Black)
-

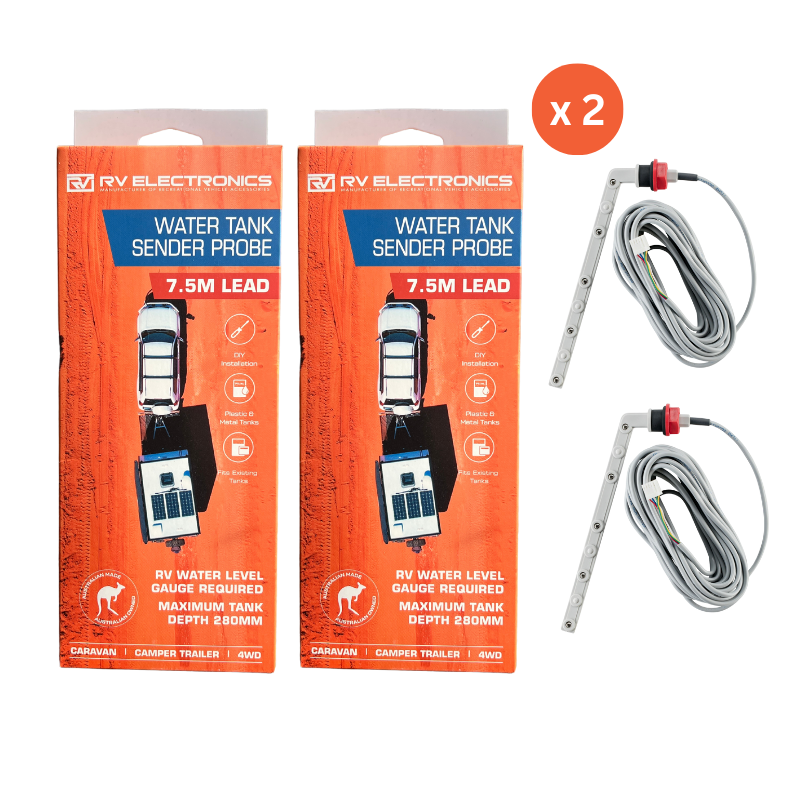

2 × 7.5 m Tank Sender Probes
-
1 × A23 Battery (pre-installed)
-
1 × Cut-out Template
-

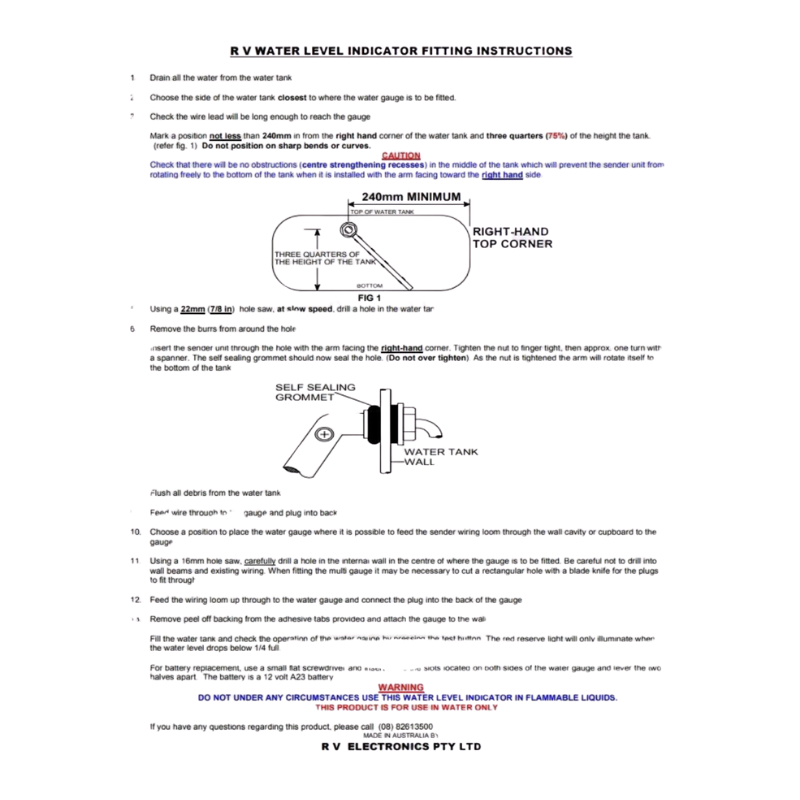

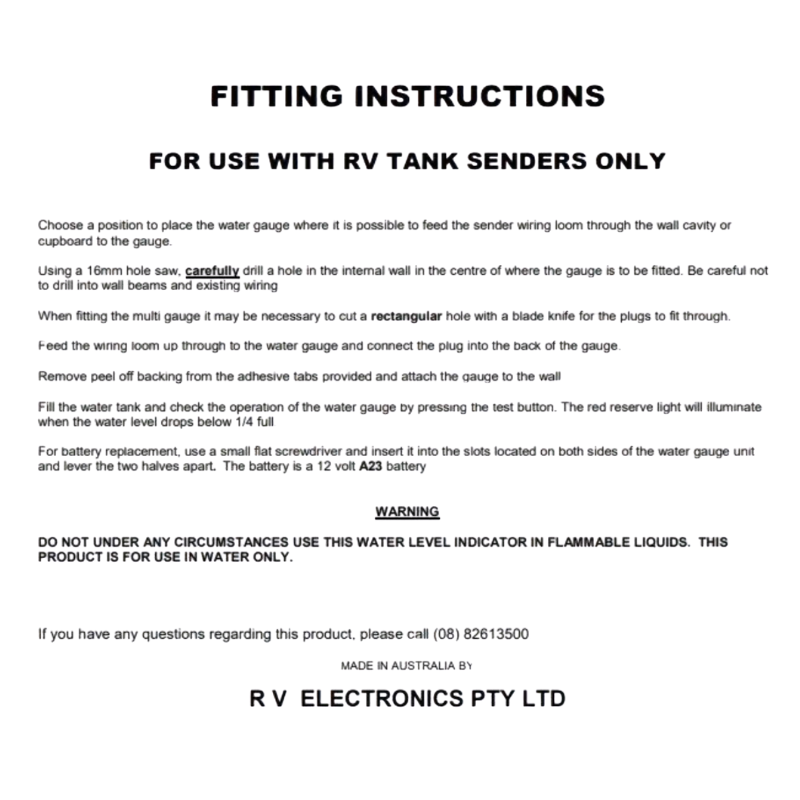

Fitting Instructions
📊 Specifications
-
Brand / Model: RV Electronics Slimline Double Tank Gauge
-
Gauge Size (H × W × D): 65 × 65 × 11 mm
-
Display: 5-bar LED with push-button Test
-
Power: A23 Battery (included) – no 12 V wiring required
-
Sender Probes: 2 × 7.5 m side-mount arms (5 sensors each; no moving parts)
-
Tank Compatibility: Plastic & metal tanks
-
Installation: Requires slightly larger cut-out hole than previous model (template provided)
🛠 Installation Notes
-
Choose 7.5 m probes for longer distances between tanks and the gauge.
-
Install side-mount probes directly into the tank wall — no need to remove the tank.
-
Compatible with previous RV Electronics sender probe systems.
-

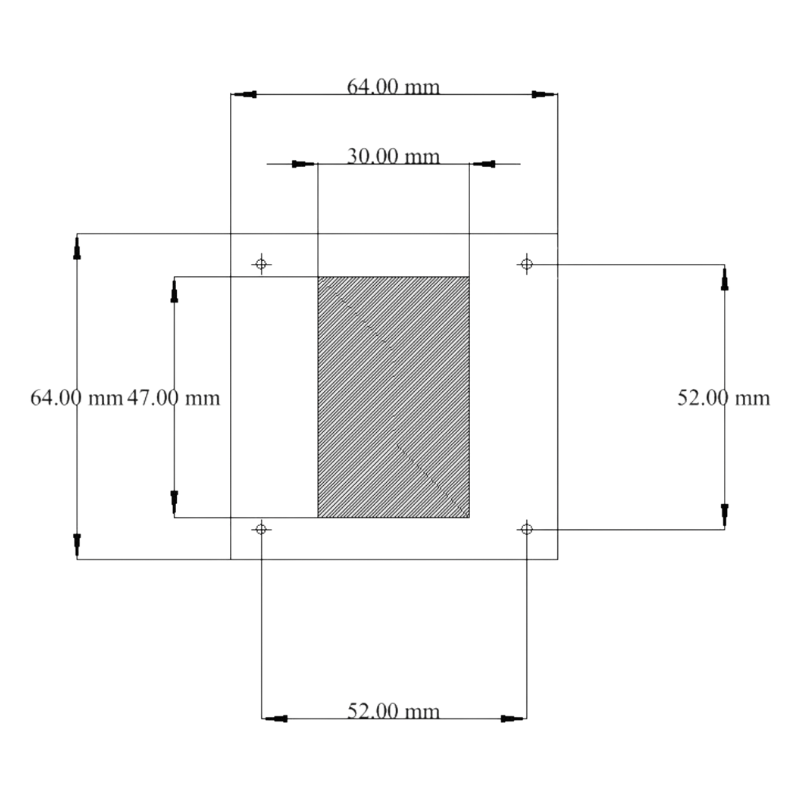

Use the included cut-out template for an accurate, professional finish.
🚐 Ideal For
-
Caravans & Camper Trailers
-
Motorhomes & RVs
-
Boats & Marine Applications
-
Off-Grid Setups & DIY Water Systems
Perfect for anyone needing a complete, battery-powered double-tank water gauge kit that’s compact, accurate, and built for long-term reliability.
