LED Gauge Triple Tank Water Level Indicator


Title: LED Gauge Triple Tank
Price:
Sale price$52.00

Description

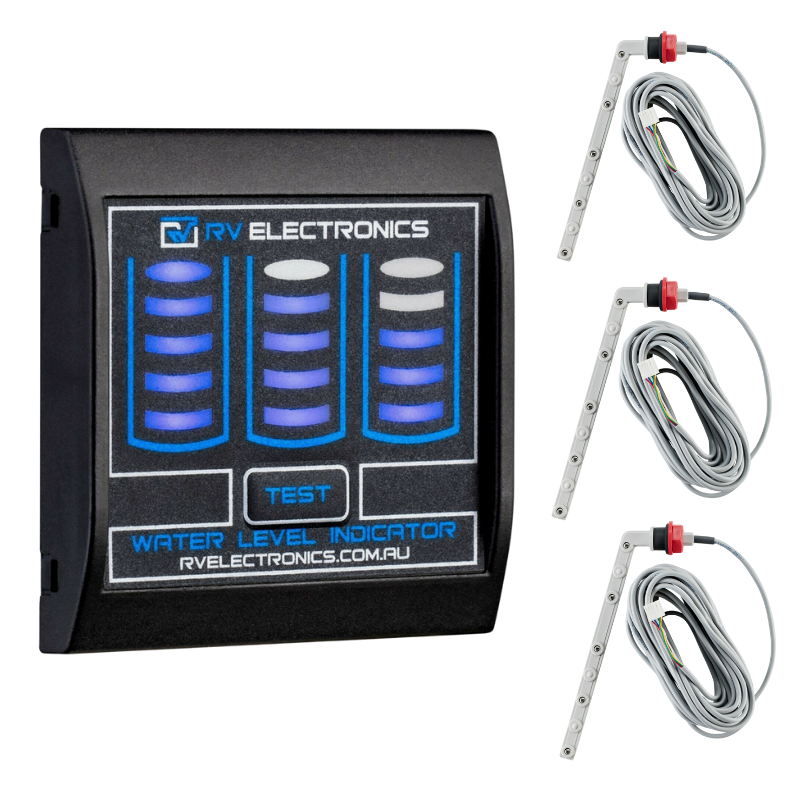

RV Electronics LED Triple Tank Water Level Indicator Gauge – Black

Product Overview

Monitor up to three onboard water tanks at a glance with the RV Electronics LED Triple Tank Water Level Indicator Gauge.
Designed for caravans, camper trailers, motorhomes, and boats, this easy-to-read gauge gives you clear, accurate tank level readings without any 12V wiring required.

With a simple push-button test system and a bright 5-bar LED display, you can instantly check your tank levels — fresh, grey, or black — from one compact panel. Powered by an included A23 battery, it’s the simplest and most reliable water level monitoring solution for your RV or marine setup.


✅ Key Features

  • Triple Tank Monitoring – View up to three water tanks with a single Test button

  • Clear 5-Bar LED Display – Easy visual reading with red “Reserve” warning light when tank is below ¼ full

  • No 12V Wiring Required – Battery-powered design (A23 battery included)

  • Fast, No-Drop InstallationSide-mount probes install without removing tanks from their mounts

  • Reliable & Low Maintenance – No moving parts; five built-in sensors per probe ensure consistent accuracy

  • Compact Gauge Size – 65 mm (H) × 65 mm (W) × 16 mm (D), sleek black surround with dark grey front

  • Universal Compatibility – Works with plastic and metal tanks; ideal for retrofits or system upgrades


📦 What’s Included

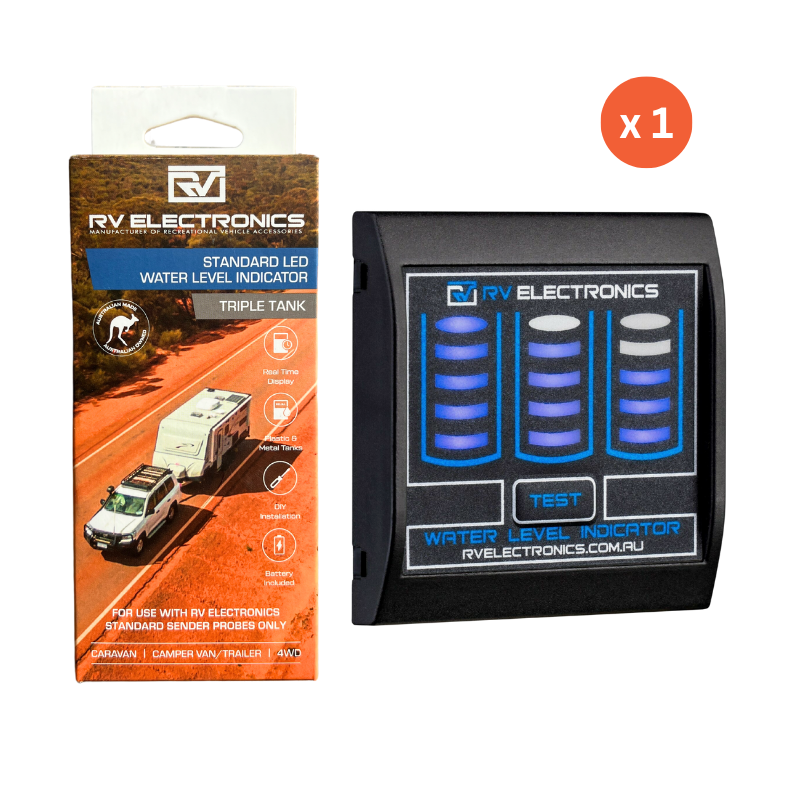

  • 1 × RV Electronics LED Triple Tank Water Level Indicator Gauge (Black)

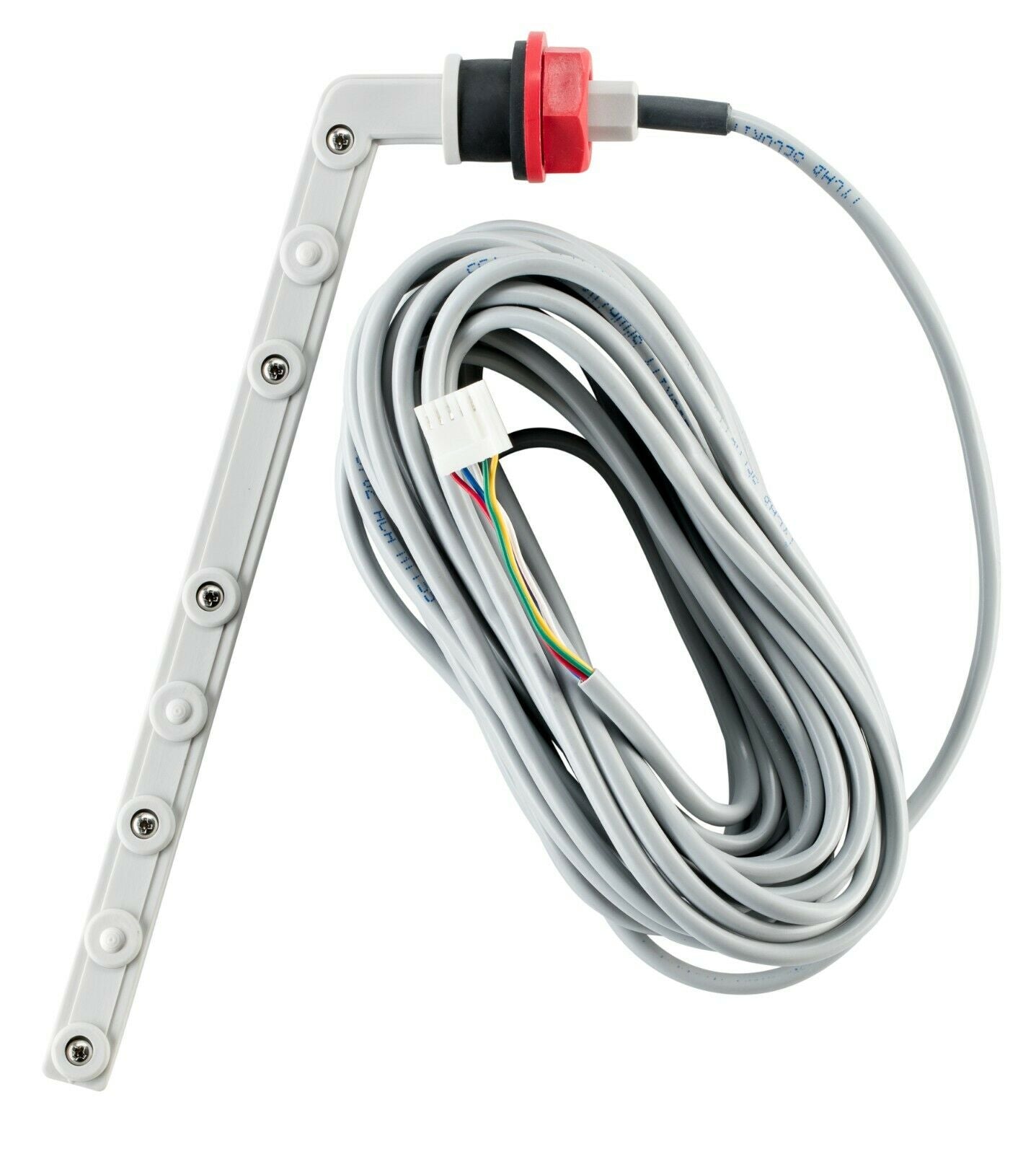

  • 3 × 7.5 m Side-Mount Sender Probes (one per tank) (choose the full kit option above if you want the probes included)

  • 1 × A23 Battery (pre-installed)

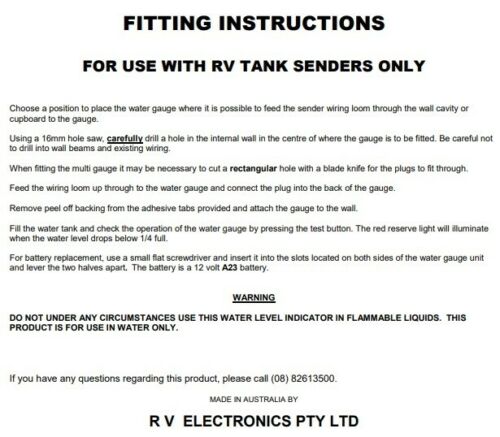

  • 1 × Mounting Template & Fitting Instructions


📊 Specifications

  • Brand / Model: RV Electronics LED Triple Tank Gauge

  • Display: 5-bar LED with push-button test and red reserve indicator (<¼ tank)

  • Power Source: A23 12V battery (included)

  • Gauge Size: 65 mm (H) × 65 mm (W) × 16 mm (D)

  • Probe Type: Side-mounted 5-sensor arm; no moving parts

  • Tank Compatibility: Works with plastic and metal tanks

  • Installation: Similar fitment to older RV Electronics models

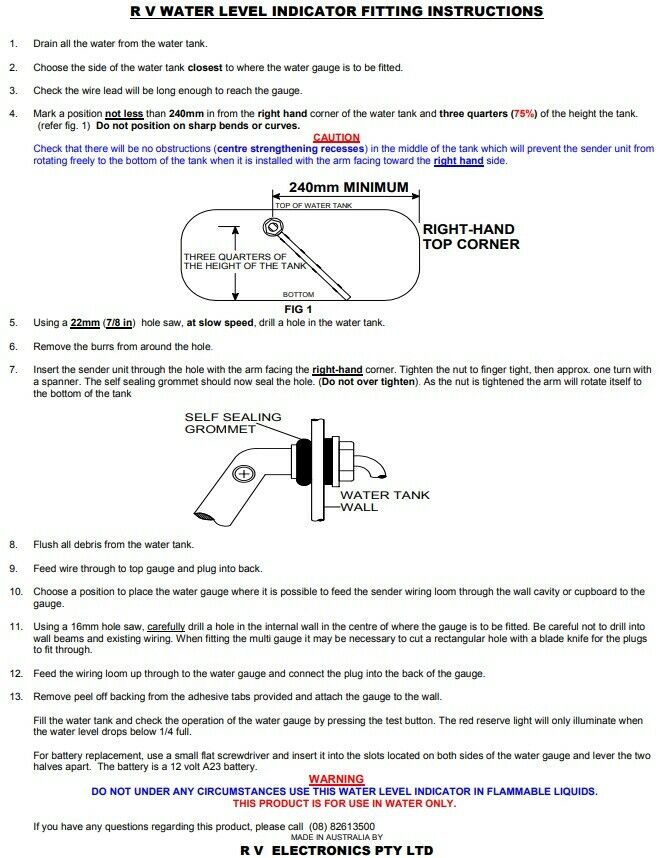

🛠 Installation & Fitment

  1. Use the supplied template to cut the mounting hole.

  2. Insert and secure each side-mount probe into your tank wall (no need to remove tanks).

  3. Connect probes to the gauge, insert the included battery, and press Test to verify function.

💡 Tip: Each tank requires its own probe. This kit includes three 7.5 m probes for long cable runs — ideal for larger caravans and motorhomes.


🚐 Ideal For

  • Caravans & RVs

  • Camper Trailers

  • Motorhomes

  • Boats & Marine Applications


Why Choose the RV Electronics LED Triple Tank Gauge

✔ Trusted Australian RV Electronics brand
✔ Simple, accurate, and battery-powered — no 12V wiring required
✔ Fast, clean installation with no moving parts
✔ Perfect upgrade or retrofit for existing tank monitoring systems
✔ Reliable, low-maintenance operation for years of travel


Keep track of your caravan’s water supply with confidence — the RV Electronics LED Triple Tank Water Level Indicator delivers accurate, instant readings with zero hassle.
