LED Gauge Double Tank + 2x5m Tank Sender Probes Bundle

RV Electronics Slimline Double Tank Water Level Gauge + 2× 5 m Sender Probes – Black

Product Overview

Monitor two onboard water tanks with accuracy and ease using the RV Electronics Slimline LED Double Tank Water Level Gauge + 2× 5 m Sender Probes. Designed and made in Australia, this compact and reliable dual-tank system is perfect for caravans, RVs, motorhomes, camper trailers, and boats.

With its slim 65 × 65 mm profile, battery-powered LED display, and no-wiring installation, this complete kit offers simple, accurate water level monitoring. The 5-metre sender probes are ideal for standard caravan layouts, while the push-button Test feature provides instant, easy-to-read tank levels whenever you need them.

Built tough for Australian conditions, the Slimline Gauge is retrofit-compatible with previous RV Electronics systems – making it the ideal upgrade or replacement.

---

✅ Key Features & Benefits

• **Complete Double Tank Kit ** – Includes 1 × Slimline Gauge + 2 × 5 m Sender Probes

• **Compact Slimline Design ** – 65 × 65 × 11 mm face fits tight dashboards or panels

• **Battery Powered ** – Operates on a replaceable A23 battery (included); no 12 V wiring required

• **Fast DIY Installation ** – Side-mount sender probes install directly into tank walls – no tank removal needed

• **Accurate LED Display ** – 5-bar indicator shows precise tank levels at a glance

• **Reliable Sensor Design ** – Each probe uses 5 solid-state sensors with no moving parts for long-term accuracy

• **Retrofit Compatible ** – Works with older RV Electronics probes and control panels

• **Universal Fit ** – Suitable for both plastic and metal tanks

• **Australian Made Quality ** – Trusted brand used by leading caravan manufacturers

---

📦 What’s Included

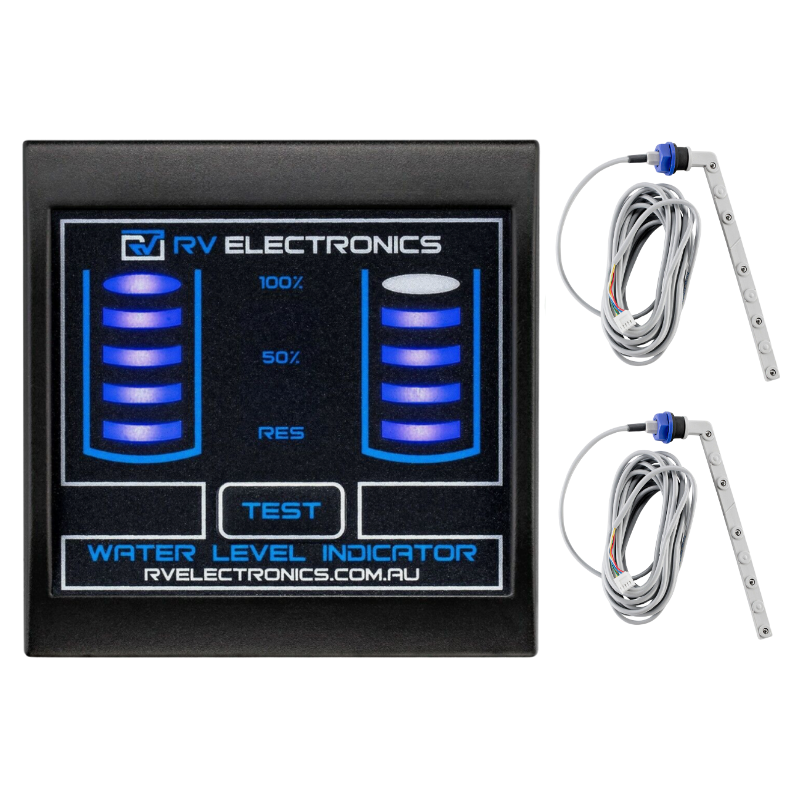

• 1 × RV Electronics Slimline LED Double Tank Water Level Indicator Gauge (Black)

• 2 × 5 m Tank Sender Probes

• 1 × A23 Battery (pre-installed)

• 1 × Cut-out Template

• Fitting Instructions

---

📊 Specifications

• Brand / Model: RV Electronics Slimline Double Tank Gauge

• Gauge Size (H × W × D): 65 × 65 × 11 mm

• Display: 5-bar LED with push-button Test

• Power: A23 Battery (included) – no 12 V wiring required

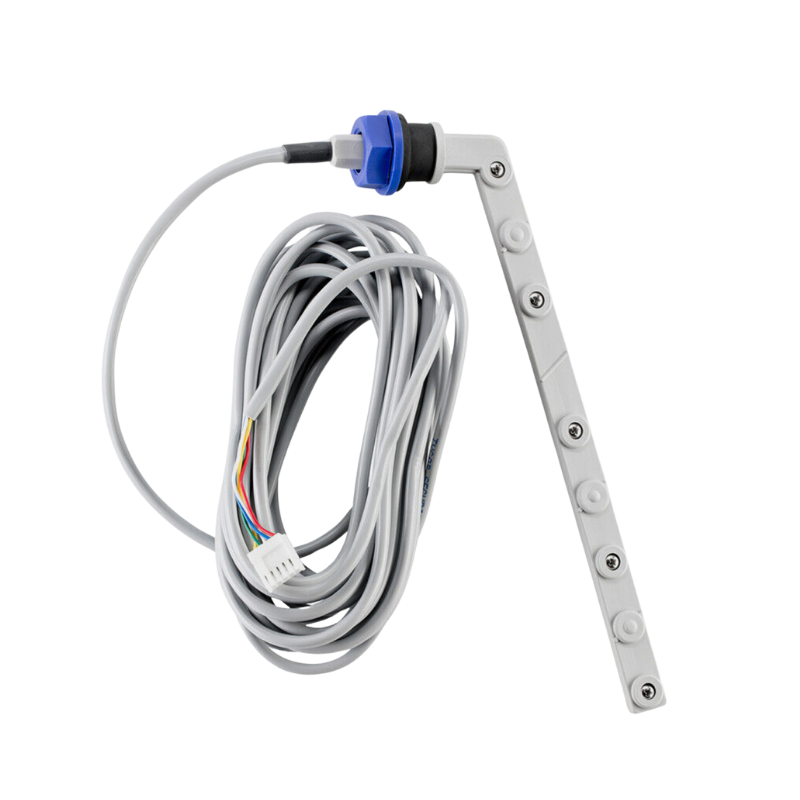

• Sender Probes: 2 × 5 m side-mount arms (5 sensors each; no moving parts)

• Tank Compatibility: Plastic and metal tanks

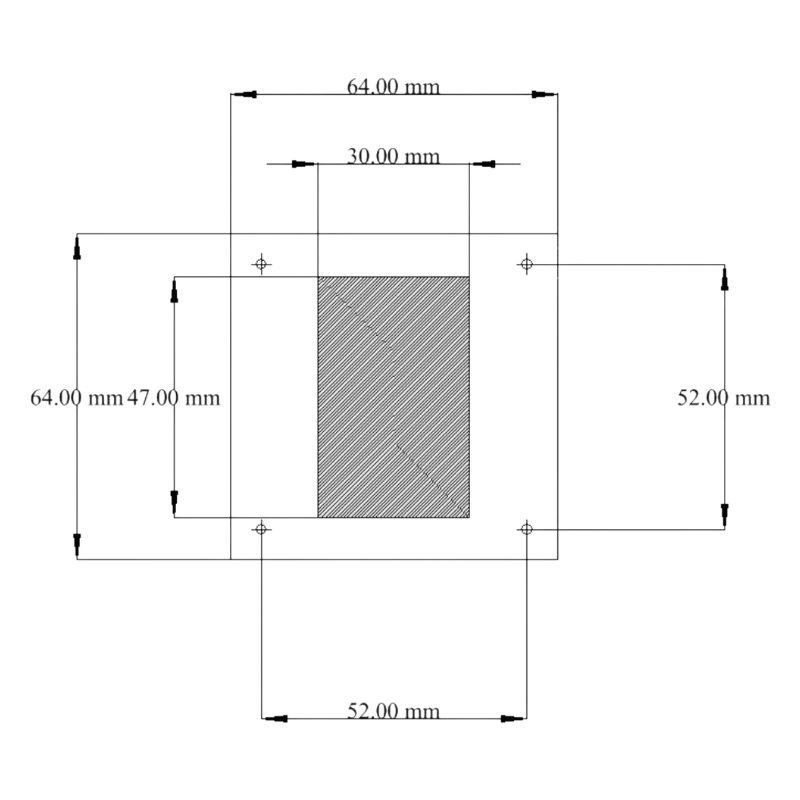

• Installation: Uses template provided; requires slightly larger cut-out than older models

---

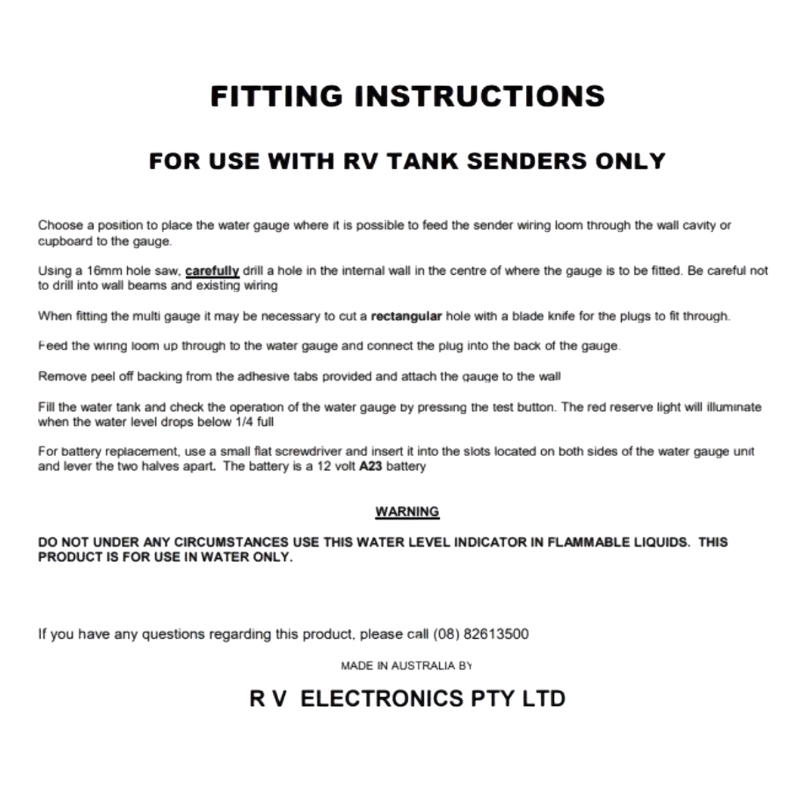

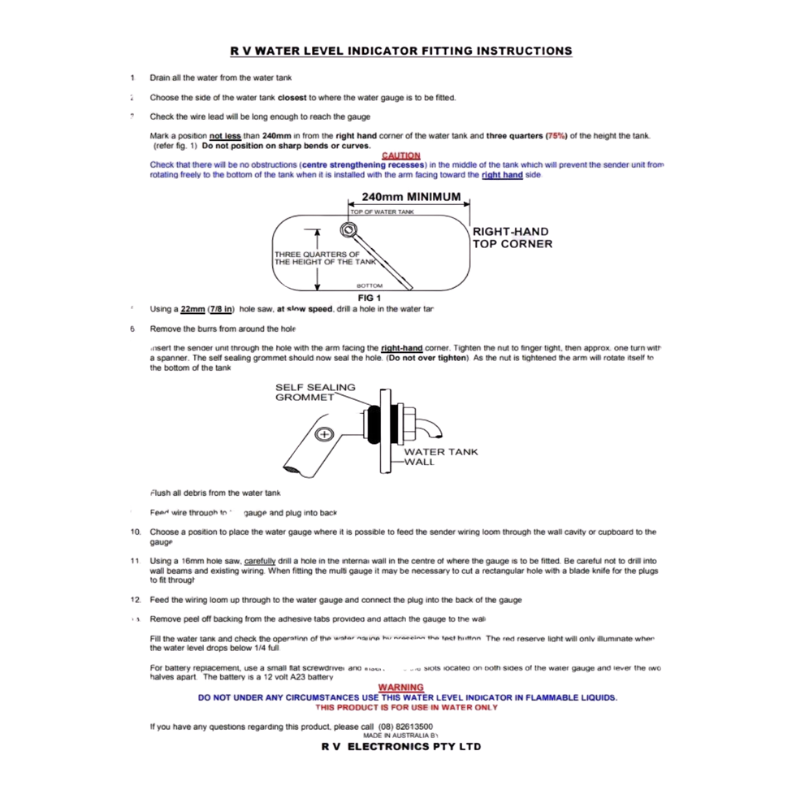

🛠 Installation Notes

1. Measure distance from each tank to the gauge to confirm 5 m probes are suitable.

2. Install side-mount probes directly into the tank wall using the included template.

3. Connect probes to the gauge and insert the A23 battery.

4. Press Test to instantly display each tank’s water level.
   💡 Fully compatible with older RV Electronics sender probe systems for easy retrofits.

---

🚐 Ideal For

• Caravans & Camper Trailers

• Motorhomes & RVs

• Boats & Marine Vessels

• Off-Grid Travel & DIY Water Setups

Perfect for owners who want a complete, battery-powered dual tank water level gauge that’s compact, accurate, and easy to install — with trusted Australian quality.
