RV Electronics Slimline Triple Tank Water Level Gauge + 3× 7.5m Sender Probes – Black
Product Overview
Keep track of your water levels with precision and ease using the RV Electronics Slimline Triple Tank Water Level Gauge Kit. Designed for caravans, RVs, motorhomes, camper trailers, and boats, this complete kit includes the slimline triple tank gauge and three 7.5 m sender probes—ideal for larger setups or longer cable runs.
Compact yet powerful, the Slimline gauge uses a bright 5-bar LED display with a red reserve warning light to give you an instant visual check of up to three tanks at once. It’s completely battery powered, meaning no 12 V wiring is required—just install, connect, and press Test to view your water levels.
Made in Australia and built for reliability, this updated model is a favourite among caravan manufacturers and DIY installers alike.
✅ Key Features & Benefits
-
Complete Triple Tank Kit – Includes 1 × Slimline triple tank gauge and 3 × 7.5 m sender probes
-
Slimline, Space-Saving Design – Compact 65 × 65 × 16 mm gauge fits neatly into small panels
-
Battery Operated – Runs on a replaceable A23 battery (included); no need for 12 V wiring
-
Accurate LED Display – 5-bar water level indicator with reserve light when tank is < ¼ full
-
Reliable Readings – Each probe uses 5 solid-state sensors with no moving parts
-
Quick, No-Drop Installation – Side-mount probes install directly into the tank wall—no tank removal required
-
Retrofit Compatible – Works seamlessly with probes from previous RV Electronics systems
-
Universal Compatibility – Suitable for both plastic and metal water tanks
-
Australian-Made Quality – Trusted brand used by leading caravan manufacturers
📦 What’s Included
-

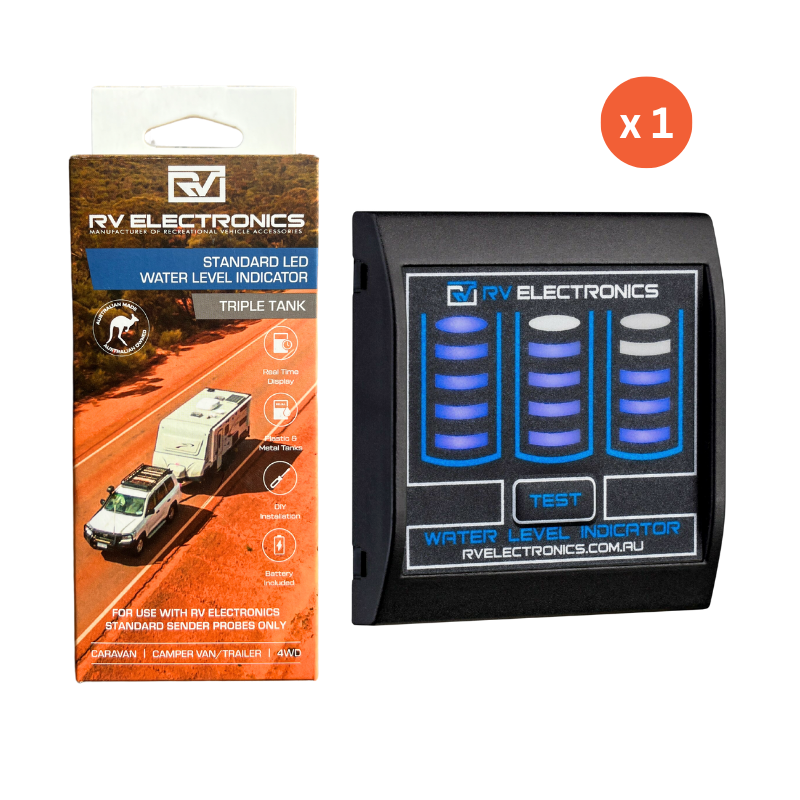

1 × RV Electronics Slimline LED Triple Tank Water Level Gauge (Black)
-

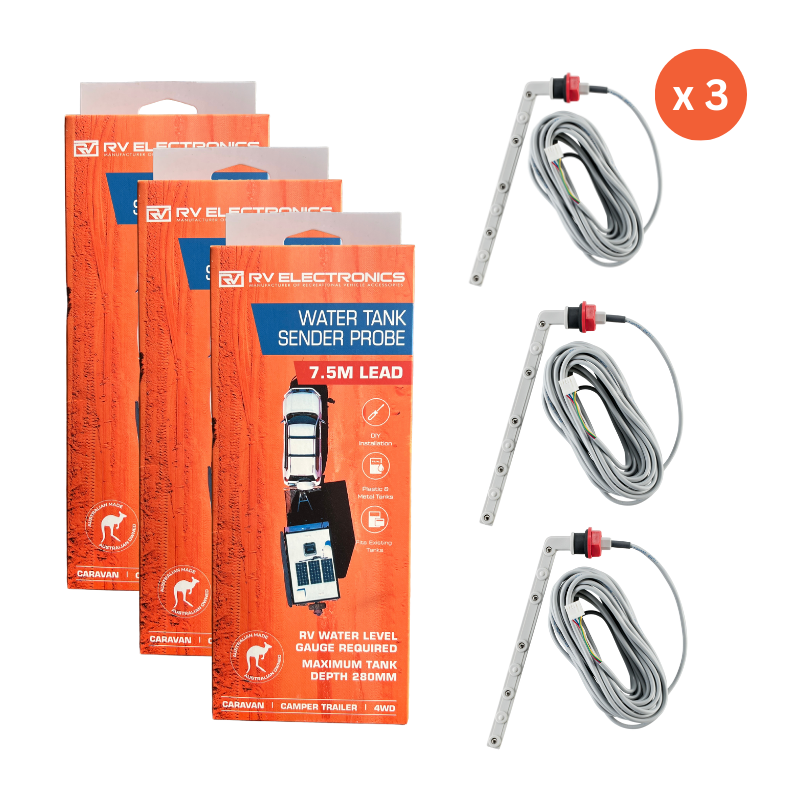

3 × 7.5 m Tank Sender Probes (one per tank)
-
1 × A23 Battery (pre-installed)
-
1 × Cut-out Template
-

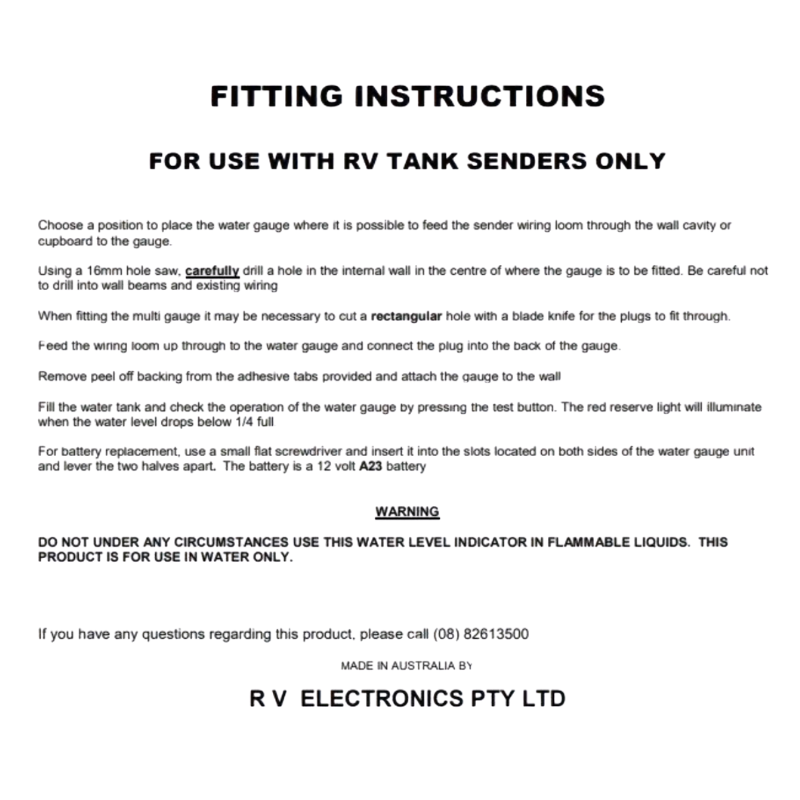

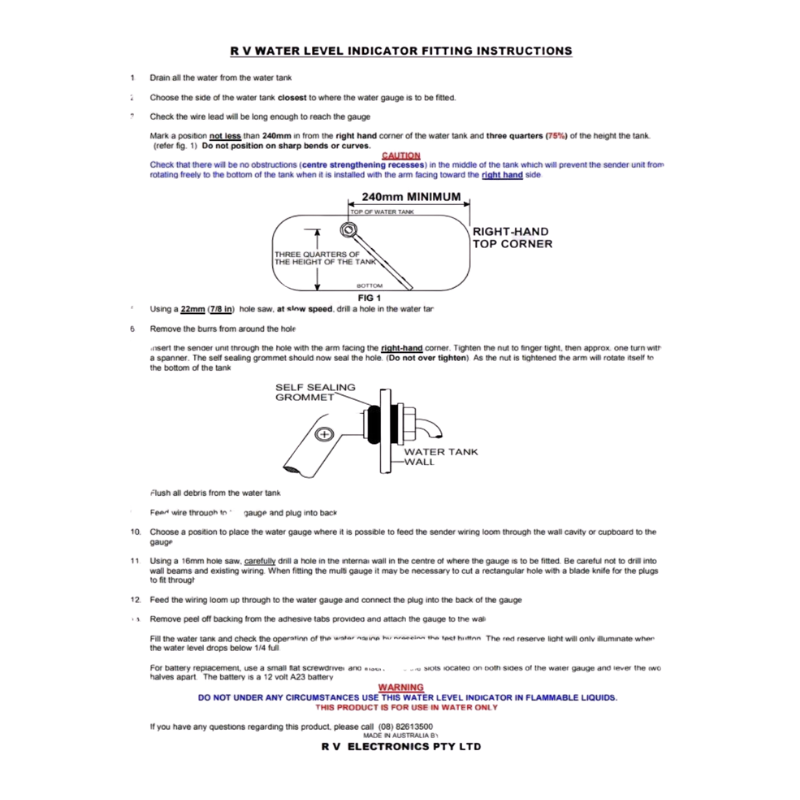

Fitting Instructions
📊 Specifications
-
Brand / Model: RV Electronics Slimline Triple Tank Gauge
-
Gauge Size (H × W × D): 65 × 65 × 16 mm
-
Display: 5-bar LED with red reserve light (< ¼ full)
-
Power: A23 battery (included) – no 12 V wiring needed
-
Sender Probes: 3 × 7.5 m side-mount probes, 5 sensors each (no moving parts)
-
Tank Compatibility: Plastic & metal tanks
-
Made in: Australia
🛠 Installation Notes
-

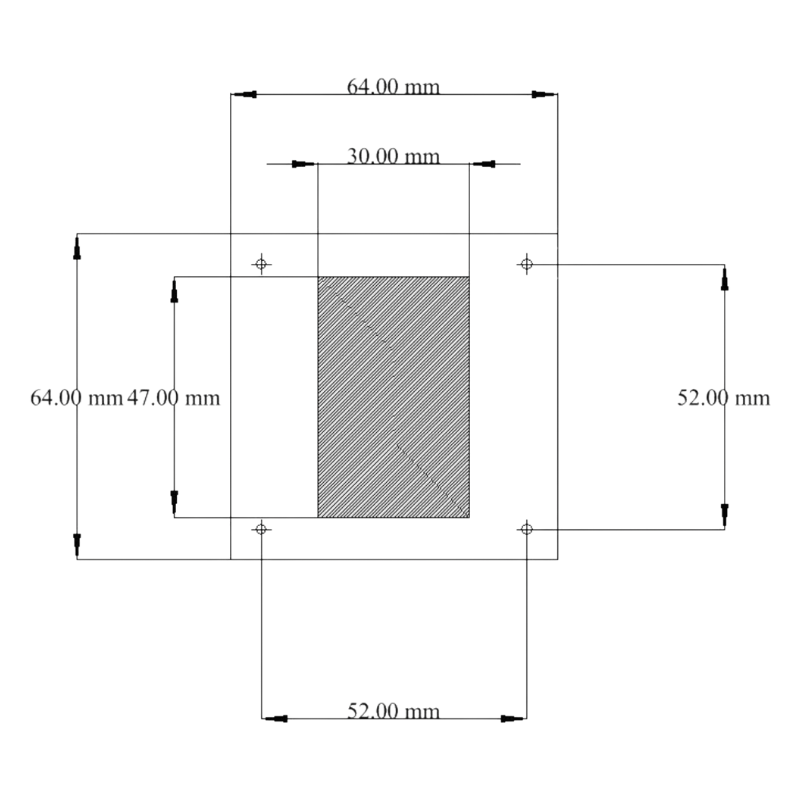

Use the supplied template to cut the gauge opening (65 mm × 65 mm).
-
Mount the gauge and insert the A23 battery.
-
Install each sender probe directly into the tank wall—no need to remove the tank.
-
Connect each probe to the gauge and press the Test button to verify readings.
-
Choose 7.5 m probes for extended wiring distances in larger caravan or boat setups.
🚐 Ideal For
-
Caravans, RVs & Motorhomes
-
Camper Trailers & Off-Grid Vans
-
Marine Boats & Yachts
-
Custom DIY Water Systems
Perfect for travellers who want a complete triple-tank water level kit that’s accurate, compact, and fully battery-powered—no wiring, no hassle.
